Pull Type wire Arc spray

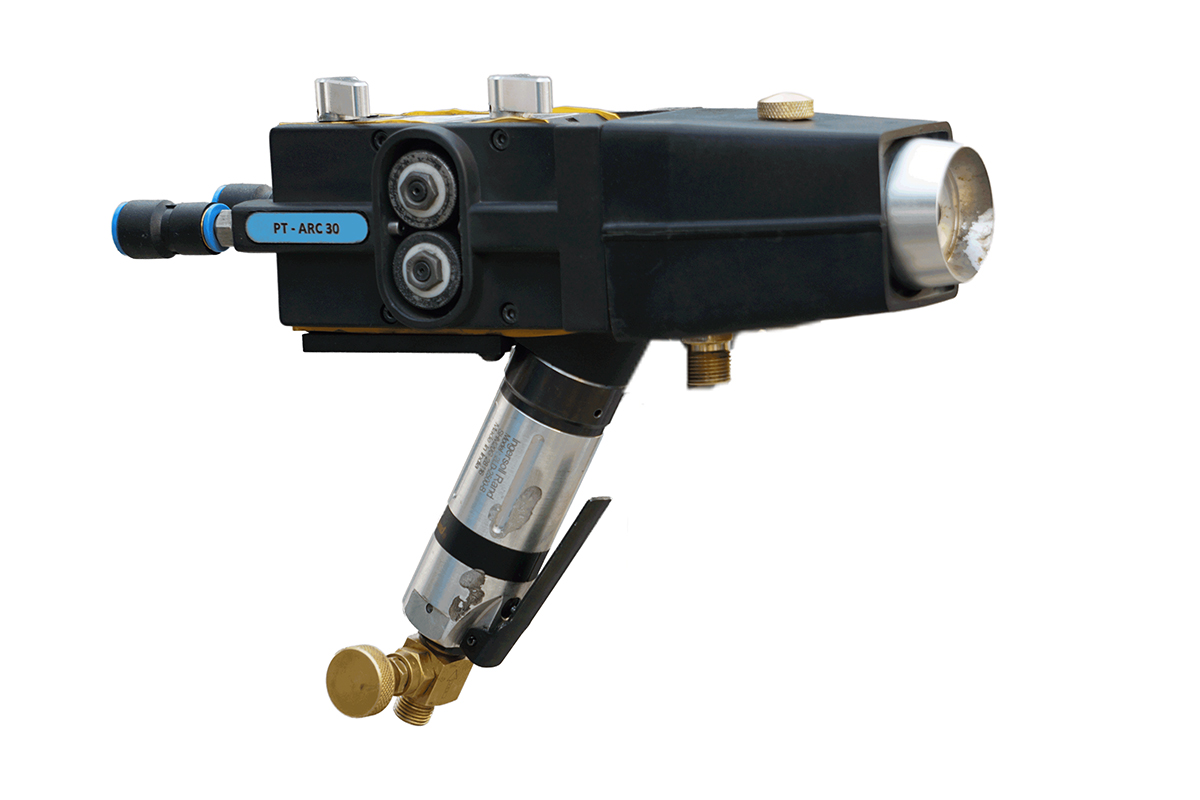

Pneumatic Drive

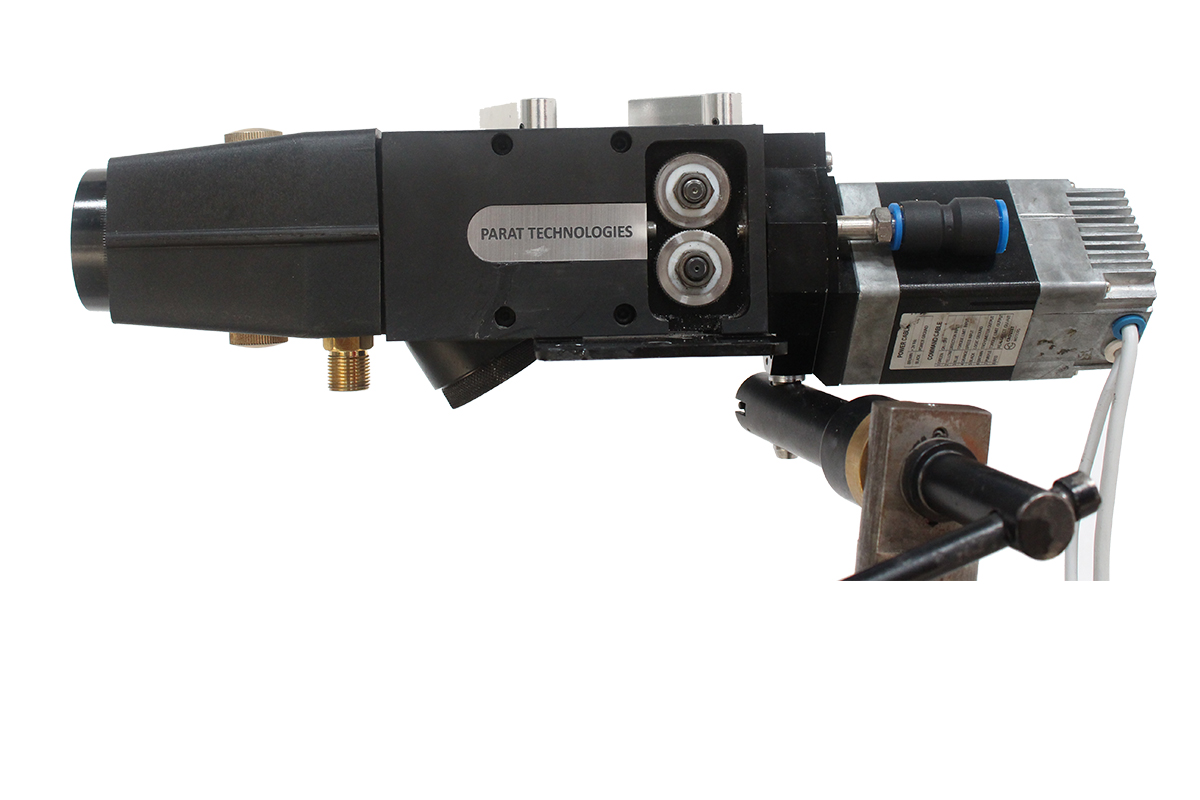

Electric Drive
Salient feature
TECHNICAL SPECIFICATION -
| Arc Spray System | 250 AMP | 400 AMP | 600 AMP |
|---|---|---|---|
| Power Requirement | 7 kW | 15 kW | 25 kW |
| Input Supply | 220-460 V 3P/50/60hz |
220-460 V 3P/50/60hz |
220-460 V 3P/50/60hz |
| High Velocity | No | Yes | Yes |
| Wire Type & DIA | Soft 1.6mm | Hard wire 1.6mm Soft wire 1.6- 2.00mm |
Hard wire 1.6mm Soft wire 1.6-2.3mm |
| Weight | 272 LBS | 445 LBS | 492 LBS |
| Wire Feeding | Both Electric & Pneumatic drive |
Both Electric & Pneumatic drive |
Both Electric & Pneumatic drive |
WIRE ARC SPRAY COATING APPLICATION -
| Wire | Average Hardness | AS Sprayed Finish (Ra) | Application Areas | Parts |
|---|---|---|---|---|
| Nickel Alloys | 20 Rc Variable | 200-350 | Bond coat, Inconel ,Monel and other Ni alloys work | General repair coating, corrosion application, etc. |
| Chrome Steel Alloys | 62 Rc | 300-500 | Heavy build up and wear resistance | Bearing journals, Crankshaft journals, general wear app. |
| Stainless Alloys | 30-60 Rc | 140-180 | Wear with Corrosion | Pump Components, Chemical Industry parts. |
| Carbide Alloys | 70 Rc | 150-500 | Hard-coating with heavy build up | Mixer blades, Fan blades, Granulators, Feed rolls, etc. |
| Copper Alloys, Brass, Bronze | Rb Scale Hardness | Average 250 | Rebuild non-ferrous alloy surfaces. | Pump impellers, print rollers, Bronze bearing areas, etc. |
| Aluminium & Zinc | Low Rb | 200-400 | Corrosion protection | Exceed galvanizing specs |
